3.83 oz Style 1521 Fiberglass Cloth with Silane Finish

Surfboards

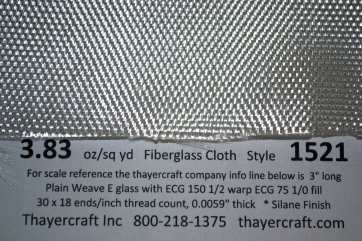

3.83 oz Warp Weave fiberglass cloth close up with Construction Data
1521 is the warp version of 1522 open weave 4 ounce fiberglass cloth that is finished in the A218 silane that's pretty soft would have a little more strength in the warp direction than the fill versus the 1522 that's more balanced. Style 1522 has a thread count of 24 x 22 ends/inch and style 1521 has a thread count of 30 x 18 ends/inch warp and fill.  Most small rolls 1521 are rolled on 2" pvc with some rolls on the original factory cores.  Prices are per roll and include free shipping to the 48 continental United States. Below are photos of some 1521 we used just to show it's conformability, even though less flexible in the warp, using the RC boat molds.

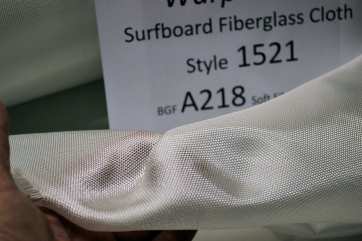

3.83 oz warp weave fiberglass cloth loose with id sheet
30"  27" & 25"wide Style 1521
3.63 oz/sq yd WARP Weave Fiberglass Cloth
Finished in Silane A218 for Any Resin
rolled on 2" Foam Core PVC pipe.
Prices are per roll with free shipping
to the 48 Continental United States.


***Note:  Silane finished rolls may have a white polyester fabric to prevent the
corrugated wrap from putting ridges in the fiberglass cloth.  The fiberglass cloth
will be past this layer.

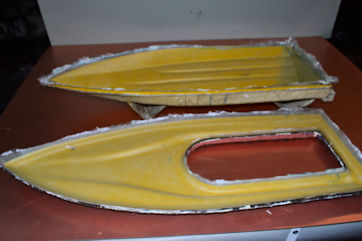

3 layers 1521 with Epoxy in RC boat molds

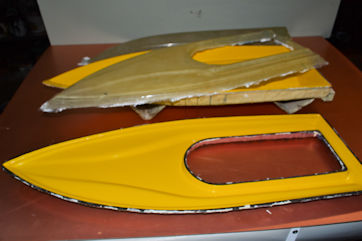

1521 3.83 oz fiberglass cloth with epoxy layup demolded
