4 x 4 Twill Fiberglass Cloth

Fiberglass Cloth Education > Weave Types
The best example we have of a 4 x 4 twill weave fiberglass cloth is the high thread count style 7783.  Style 7783 is an 8.9 oz/sq yd fiberglass fabric with a thread count of 58 x 54 ends/inch and uses the yarn ECDE 1/0 in both the warp and fill.  This fabric is very similar to 7781 in that it uses the same yarn and is close in thread count differing of course with the type of weave.

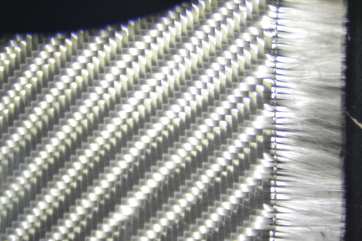

4x4 twill style 7783 8.9 oz/sq yd fiberglass fabric micro  thayercraft

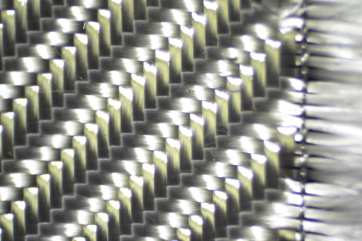

Here is a little closer view of the 4 x 4 twill style 7783.
closer micro view 7783 8.9 oz 4 x 4 twill fiberglass cloth from Thayercraft
