9.8 oz Style 1800 Fiberglass Cloth with Volan Finish

Boat & Tooling
Loose roll style 1800 9.8 oz/sq yd fiberglass cloth
Style 1800 fiberglass cloth shaped around baseball

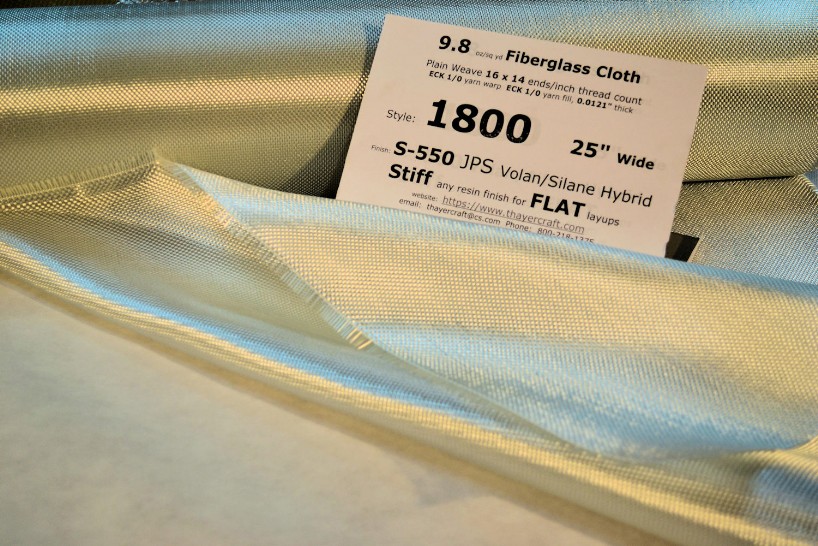

Photo 1 style 1800 9.8 oz/sq yd fiberglass cloth loose with id sheet
Photo 3, 9.8 oz/sq yd fiberglass cloth style 1800 fiberglass cloth loose
Style 1800 fiberglass cloth is a 9.8 oz/sq yd plain weave boat and tooling type fabric with a thread count of 16 x 14 ends/inch.  Style 1800 uses the yarn ECK 18 1/0 in the warp and fill.  The "K" glass filament is 13 microns and is much bigger than the 9 micron "G" filament used in style 7500 fiberglass cloth that has the same weight and thread count. The thicker 13 micron filament flatter yarn in 1800 makes it quite a bit stiffer than the similar style 7500.  Style 1800 here is finished in pure Volan and will have a green tint.  Because it is a much cheaper and stiffer fabric than the style 7500 it is priced accordingly.  The Photos are of a 38" wide roll on the factory core with 50 and 60" also available.
Prices are $3/yd for 38", $4/yd for 50" and $5/yd for 60" for individual factory rolls of style 1800 with 504 Volan finish with free shipping to the 48 continental United States (in descending order of width and yards - wider and longer first)

60" wide 504 Volan

50" wide 504 Volan

38" wide 504 Volan

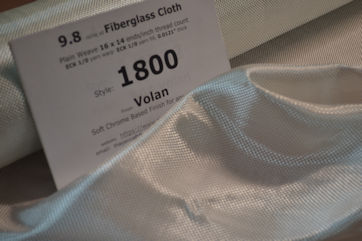

Photo 5 style 1800 9.8 oz/sq yd fiberglass cloth loose with id sheet
Close up of style 1800, 9.8 oz/sq yd fiberglass cloth with construction data

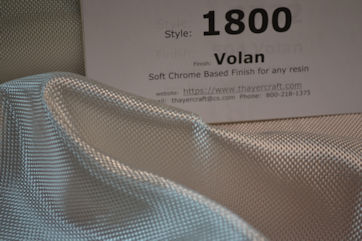

Photo 4 style 1800 9.8 oz/sq yd fiberglass cloth loose with id sheet

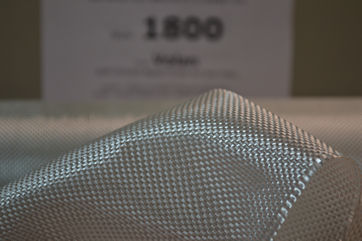

Photo 2 style 1800 9.8 oz/sq yd fiberglass cloth
