38" 8.6 oz Style 1543 Fiberglass Cloth with 497A finish

Unidirectional > 8.6 oz 1543
Style 1543 is a nice 4 harness satin weave unidirectional E-glass fiberglass cloth with about 85% of the glass in the warp direction.  1543 has a thread count of 48 x 30 ends/inch warp & fill respectively, uses ECG 75 1/2 yarn in the warp and ECD 450 1/2 in the fill and has a thickness of 0.0090". 1543 38" is finished in 497A silane and is available in  20 and 50 yard rolls which are neatly rolled by us on 2" pvc.
38"  unidirectional Style 1543
8.6 oz/sq yd 4 harness satin Fiberglass Cloth
Finished in 497A Silane for any Resin
rolled on 2" Foam Core PVC pipe.
Shipping has got so high and not having an accurate shipping calculator
we are no longer able to sell any rolls with free shipping.  Email us to
thayercraft@cs.com the roll you want 1-Style, 2-width, 3-finish, 4 yards
and we'll quote you the actual shipping cost and if you still want the
roll we'll send a PayPal request.   If you have any problems
enter the individual letters of the email address
thayercraft@cs.com.  This email is monitored 24/7.

20 yards 1543  38" 497A finish $79.43

***Note:  Silane finished rolls may have a white polyester fabric to prevent the
corrugated wrap from putting ridges in the fiberglass cloth.  The fiberglass cloth
will be past this layer.

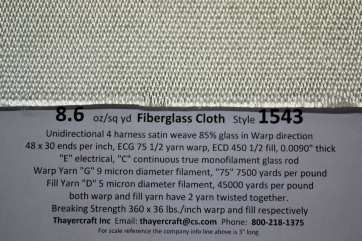

1543 close up with data
1543 38 497A 50 loose 8.6 oz 4hs fiberglass cloth
